RAD-R pneumatic torque wrench
Available for sale
Available for rent

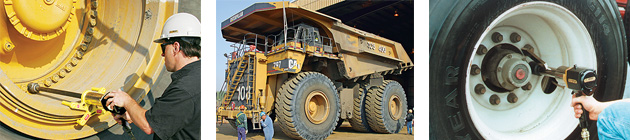

Specially designed for tightening wheel nuts, the RAD-R torque wrench allows precise torque control
RAD-R, a torque wrench dedicated to wheel nuts
For maximum safety, it is important to ensure regular maintenance of heavy machinery and specialized vehicles such as transport trucks. This requires precise tightening/loosening of the nuts, with suitable tools designed for optimal comfort in use. The RAD-R torque wrench meets this need perfectly.
User-friendly
RAD-R torque wrenches allow nut maintenance operations to be carried out without vibrations, while ensuring high precision. This is a major advantage for operators, who can then use these tools in complete safety, while ensuring suitable tightening.
Why choose RAD-R?
- Optional removable custom reaction arms, allowing operation on almost any type of wheel
- Extended reaction point
- Precise tightening
- Controlled tightening; repeatability of + / – 3%

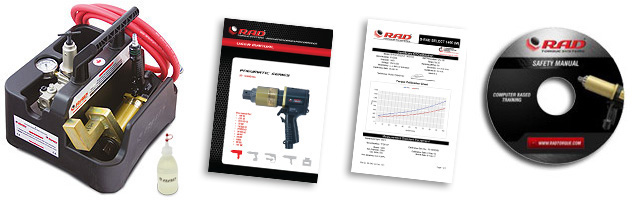

Accessories supplied with each torque wrench
- Reaction arm with retaining ring
- 3.6m flexible hose
- Lightweight FRL unit + tool holder + pressure gauge + filter + regulator + lubricator
- Lubricating oil for FRL unit
- Manual
- Calibration certificate
Options
- Removable reaction arm

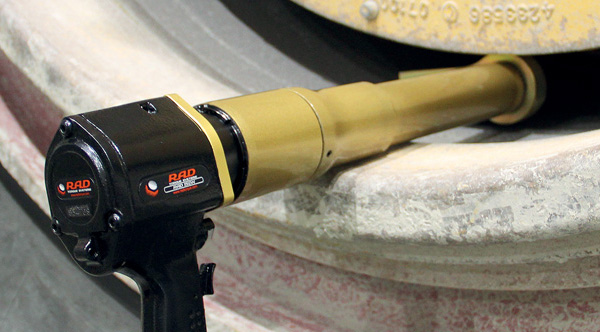

- Fixed nose extension (-R) specially designed for mining haul trucks between 50 and 400 tons, and front loaders
- Nose extension kit (-NX) intended primarily for off-road construction machinery. It has 3 different reaction arms and a nose extension for hard to reach areas
Available RAD-R torque wrench models
| N° | Model | Square drive | Torque (Nm) | RPM | Weight (Kg) | Dim. A (mm) | Dim. B (mm) | Dim. C (mm) | Dim. D (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 13541 | 10 GX-R | ¾″ | 400 – 950 | 115 | 5,4 | 368 | 63 | 69 | 228 |
| 20809 | 20 NDX-R | 1″ | 400 – 2000 | 10 | 7,3 | 542 | 69 | 70 | 204 |
| 13563 | 2400 NGX-R | 1″ | 700 – 2450 | 10 | 12,4 | 546 | 76 | 83 | 241 |
Available nose extensions
| N° | Model | Weight (Kg) | Square drive | Torque (Nm) | RPM | Weight (Kg) | Dim. A (mm) | Dim. B (mm) | Dim. C (mm) | Dim. D (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 14550 | 14 GX-NX | 7,6 | ¾″ | 275 – 1350 | 20 | 3,6 | 533 | 63 | 69 | 228 |
| 19340 | 20 DX-NX | 7,3 | 1″ | 400 – 2000 | 10 | 3,9 | 508 | 69 | 70 | 204 |
Air consumption
| N° | Model | Motor | @ 6,7 bpm | @ 100 psi |
|---|---|---|---|---|
| 13541 | 10 GX-R | NPW 120 | 792 LPM | 28 CFM |
| 20809 | 20 NDX-R | NPW 120 | 792 LPM | 28 CFM |
| 13563 | 2400 NGX-R | NPW 180 | 1130 LPM | 40 CFM |
| 14550 | 14 GX-NX | NPW 120 | 792 LPM | 28 CFM |
| 19340 | 20 DX-NX | NPW 120 | 792 LPM | 28 CFM |
